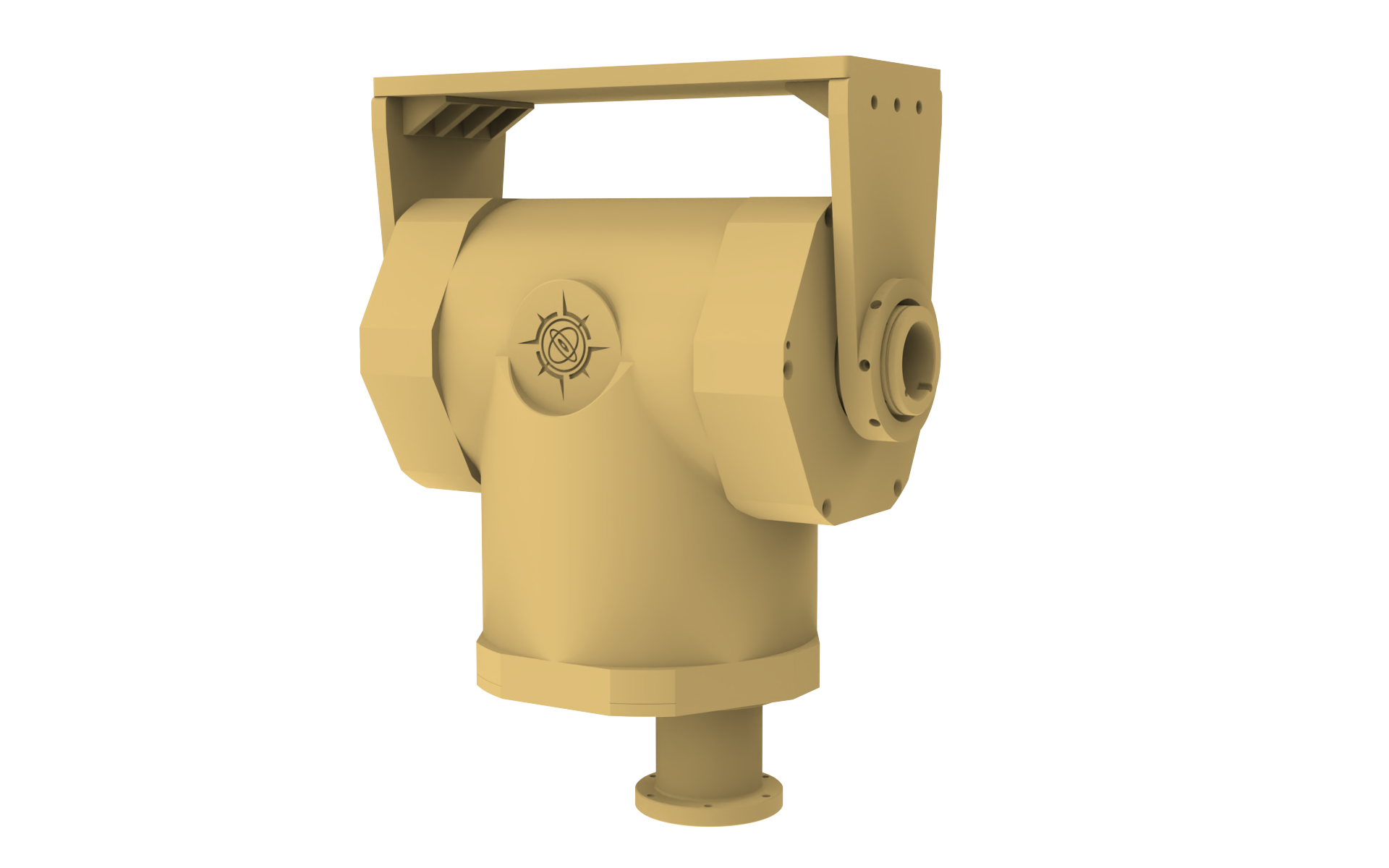

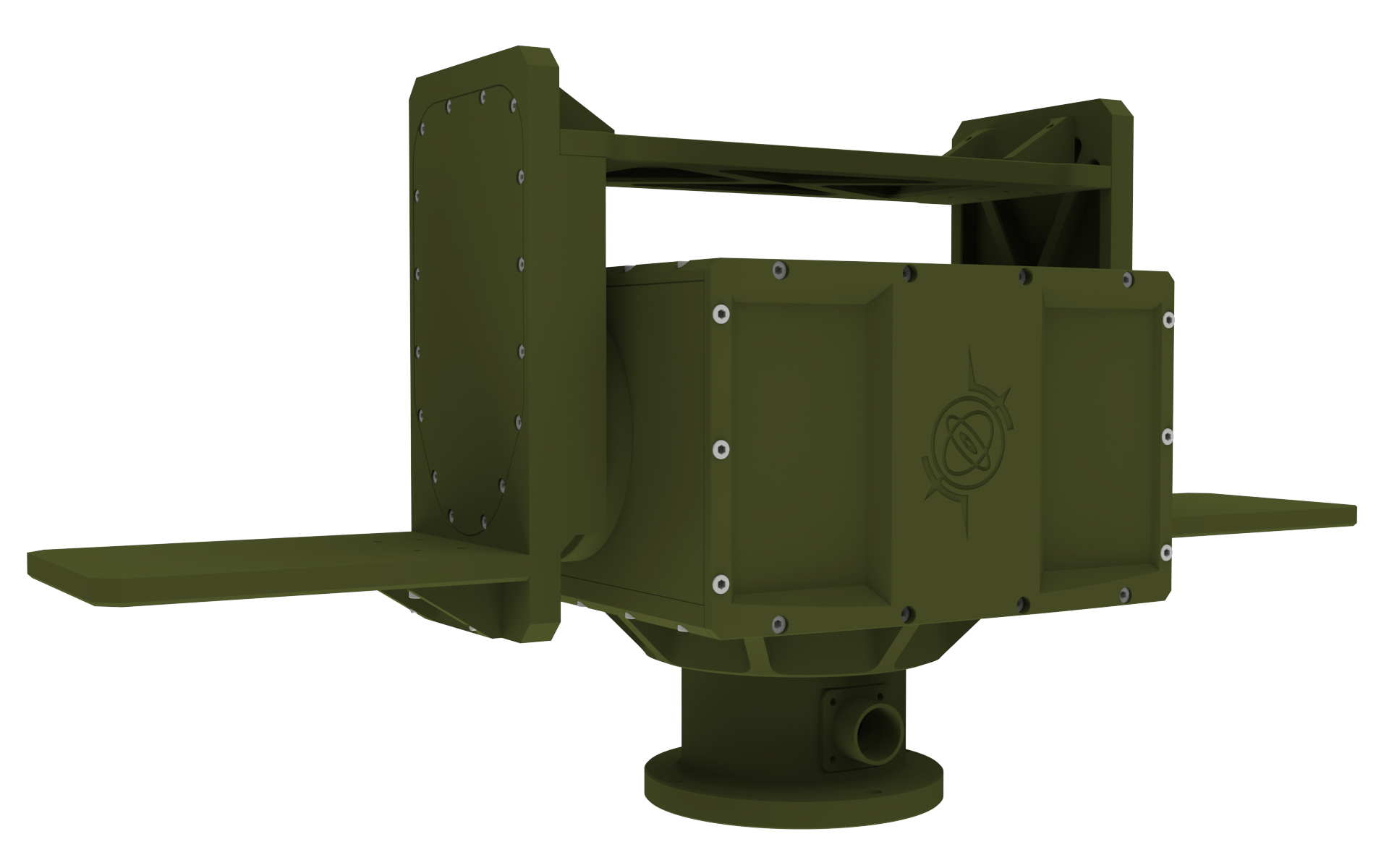

With harmonic drive technology, it is a unit that can meet precise positioning, high speed and heavy load requirements at the same time and can operate flawlessly in all environmental conditions. It can be produced in 2 different groups as light carrying capacity and heavy carrying capacity.
Key Features:
- Harmonic Drive
- Silent Stepper Motor Drive Technology
- High Resolution Output Encoder
- Unique Design
- Integrated Connector Solutions
- Continuous rotation capability in pan axis
- High acceleration
- Ability to move at very low speeds
- Fast fixing solutions at housing connection points
|
Technical Specifications |
|
|
Weight (kg) |
max. 17kg |
|
Dimensions (width x length x width) |
|
|
Payload Capacity (kg) |
5-80kg (10-140Nm Tork) |
|
Pan Speed (°/s) |
0.001°/s - 80°/s |
|
Tilt Speed (°/s) |
0.001°/s - 80°/s |
|
Pan Movement Capability (°) |
n x 360° (continuous) |
|
Tilt Movement Capability (°) |
±45° |
|
Operating Temperature |
-40°C den +80°C |
|
Standards |
Mil-Std-810G, IP67 |
|
Communication |
TCP/IP, RS485, RS422, Pelco-D |
|
Power |
24VDC |
|
Material |
Aluminium |
|
Backlash |
<1arcmin |
